Wire stripping, twisting and tinning machine for 3cores sheathed wire
Product feature:
1. Mainly process for the 3 cores round sheathed wire and other sheathed wire by stripping ,twisting and tinning;
2. Tight and strong design, fast positioning and high precision;
3. Big power tinning furnace, fast temperature increasing, high control precision;
4. High production and automation, labor force saving;
Technical parameters:
contact us
Mobile:+86 18796985613
Web:http://bozhiwang.en.made-in-china.com

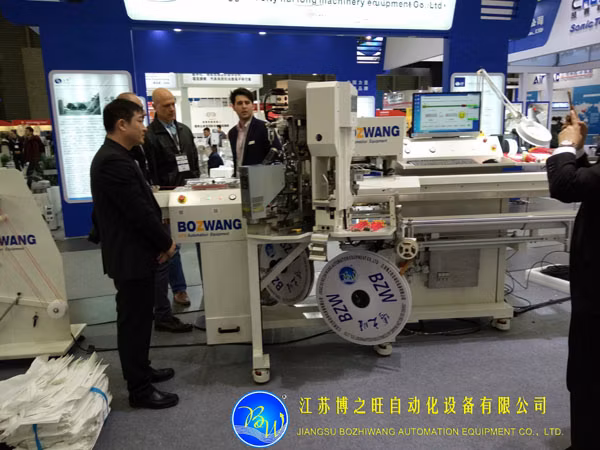

exhibition photos
Product feature:
1. Mainly process for the 3 cores round sheathed wire and other sheathed wire by stripping ,twisting and tinning;
2. Tight and strong design, fast positioning and high precision;
3. Big power tinning furnace, fast temperature increasing, high control precision;
4. High production and automation, labor force saving;
Technical parameters:
| 1. Stripping length: 2mm-9mm 2. Applied wire: H03VVH2-F ,H05WH2-F,H03VV-F,RVV,VFF,3 cores round sheathed wire, flat sheathed wire; 3. Capacity: 1700-2000 PCS/H 4. Wire dividing length: Max.50mm 5. Tinning length: 2mm-9mm 6. Air supply: 0.5 Mpa-0.8Mpa,6m3/h 7. Voltage: AC220V /50HZ 8. Motor: 0.75KW 9. Weight: 300kg 10. Dimension: 1200×630×1300mm 11. Function: wire dividing, stripping, twisting, tinning; |
